Fleet Orchestration, Canary Rollouts & Policy Management

Fleet Orchestration is the central engine of CollectorCtrl. It allows you to group your fleet by resource attributes and manage automated configuration rollouts with surgical precision — whether deploying an immediate atomic update or a phased Canary rollout.

What You'll Learn

  • How to access the Fleet Orchestration console
  • How to define strategy identity and priority weights
  • How to construct multi-attribute Fleet Targeting Rules with real-time reach preview
  • How to choose between Configuration Only, Binary Upgrade, or Coordinated rollout focus
  • How to configure Immediate (Atomic) vs. Canary (Phased) rollout strategies
  • How to review audit notes, deploy, and monitor live propagation across nodes

Time: ~15 minutes

Prerequisites

  • A running CollectorCtrl Management Server (Web UI at http://<server-ip>:4321)
  • One or more connected Supervisor agents reporting live resource attributes
  • Access with administrator or policy-author privileges

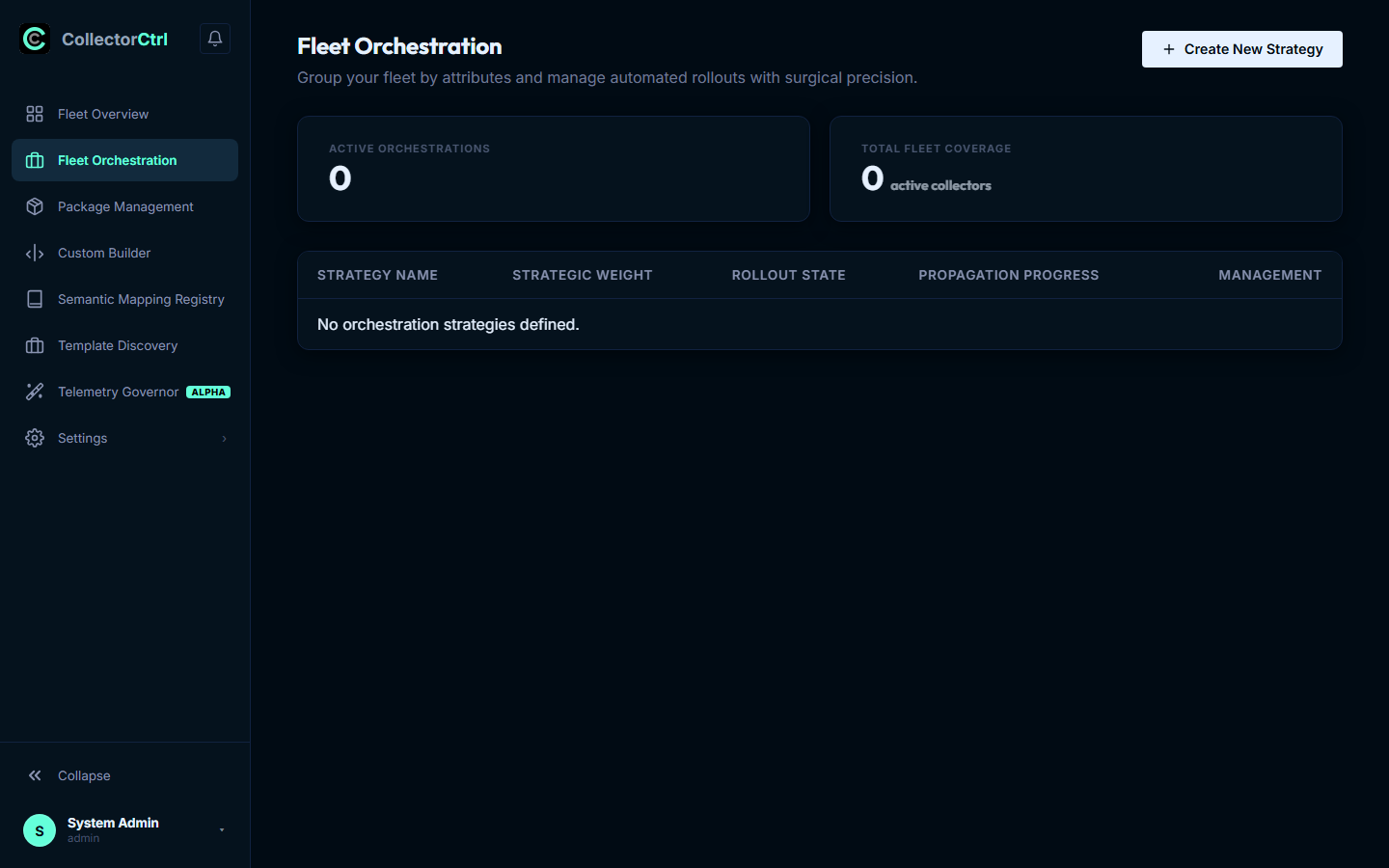

Overview: The Fleet Orchestration Console

In the CollectorCtrl left navigation menu, click Fleet Orchestration.

The Fleet Orchestration dashboard provides:

  • Active Orchestrations: Total number of currently active rollout strategies.
  • Total Fleet Coverage: Aggregate number of active collector agents targeted across all policies.
  • Target Collector Impact Lookup: Search by collector ID, hostname, or attribute (e.g. linux-node-01, os.type=linux) to immediately see which policy strategies govern any specific agent.
  • Strategies Inventory Table: Inspect strategy priority weight, targeting selectors, deployment status, coverage, and live rollout propagation percentages.

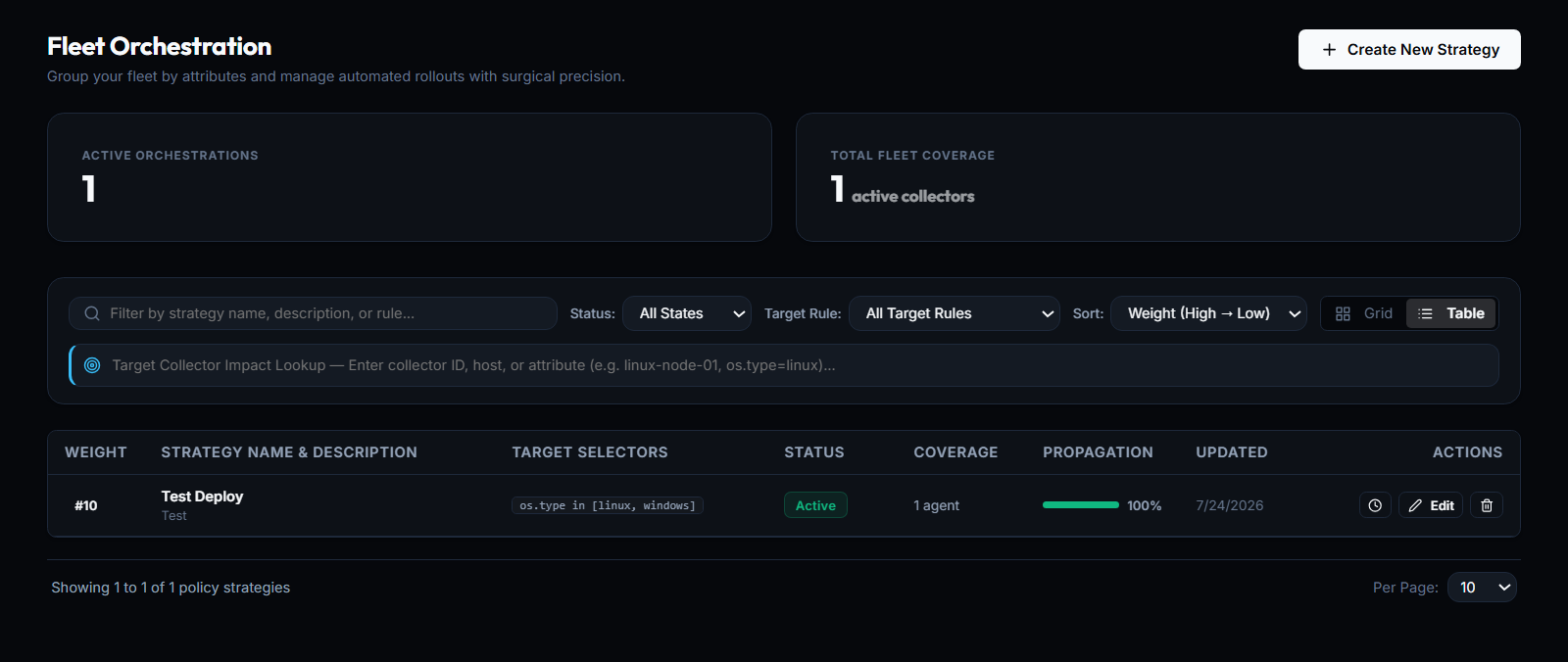

Fleet Orchestration Dashboard Overview Expand

To create a new policy, click the + Create New Strategy button in the top-right corner. This opens the 5-step Define Orchestration Strategy wizard.

Step 1: Define Strategy Identity

The first step establishes the identity, documentation, and evaluation precedence for your policy:

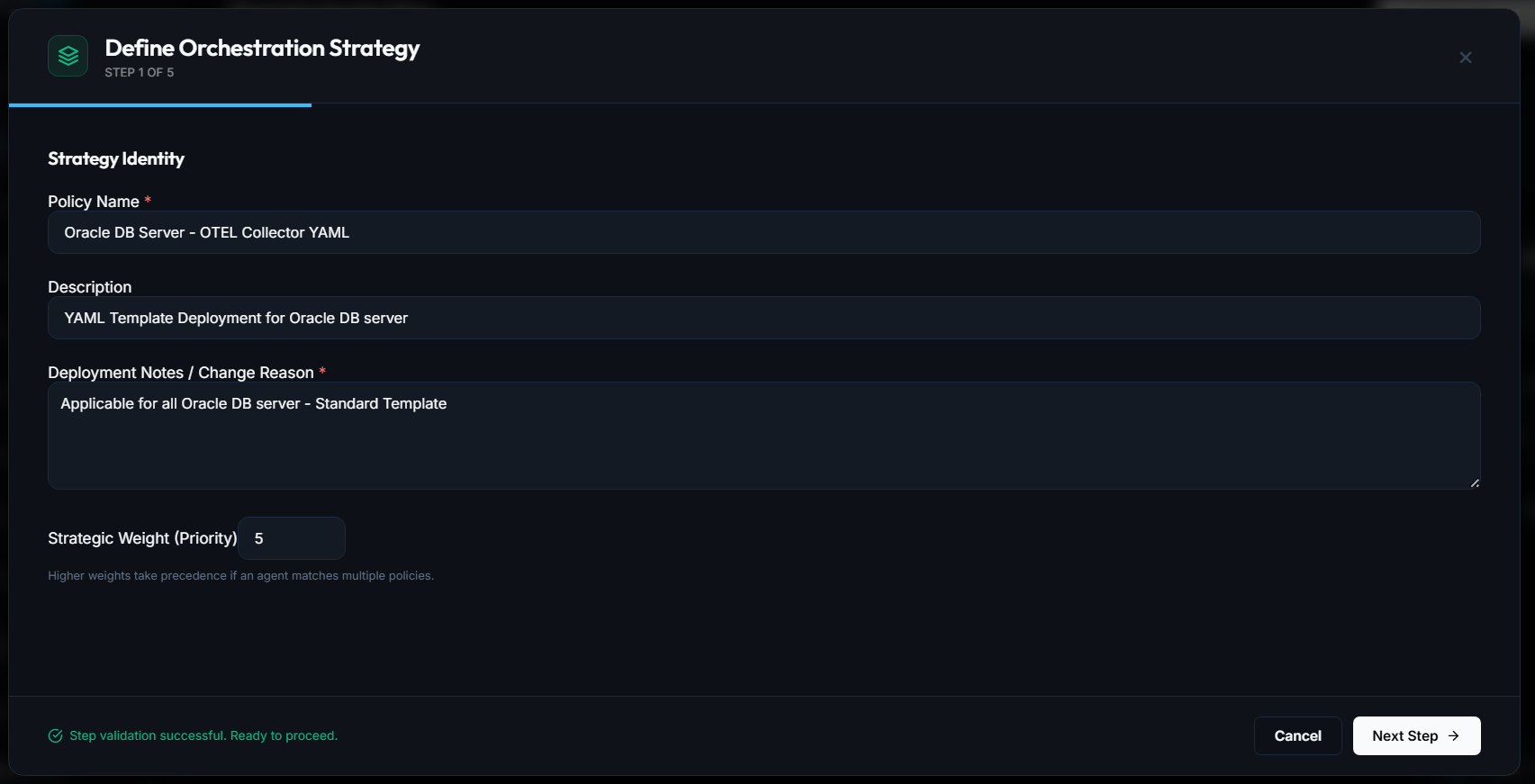

Define Orchestration Strategy - Step 1 Strategy Identity Expand

Fill in the strategy identity fields:

FieldExamplePurpose
Policy Name *Oracle DB Server - OTEL Collector YAMLA human-readable name identifying the workload or team.
DescriptionYAML Template Deployment for Oracle DB serverSummary of what this policy configures and monitors.
Deployment Notes / Change Reason *Applicable for all Oracle DB server - Standard TemplateAudit-compliant record explaining why this change is being deployed.
Strategic Weight (Priority)5 (or #10)An integer defining precedence when an agent matches multiple policies.
Understanding Strategic Weight

CollectorCtrl allows agents to match multiple policies. If there is an attribute overlap, policies with higher weights take precedence. For example, a specialized #10 policy will safely override a baseline #1 organization-wide policy.

Once all required fields are validated, click Next Step →.

Step 2: Configure Fleet Targeting Rules

CollectorCtrl uses rich, multi-operator targeting expressions evaluated against live resource attributes reported by connected Supervisor agents:

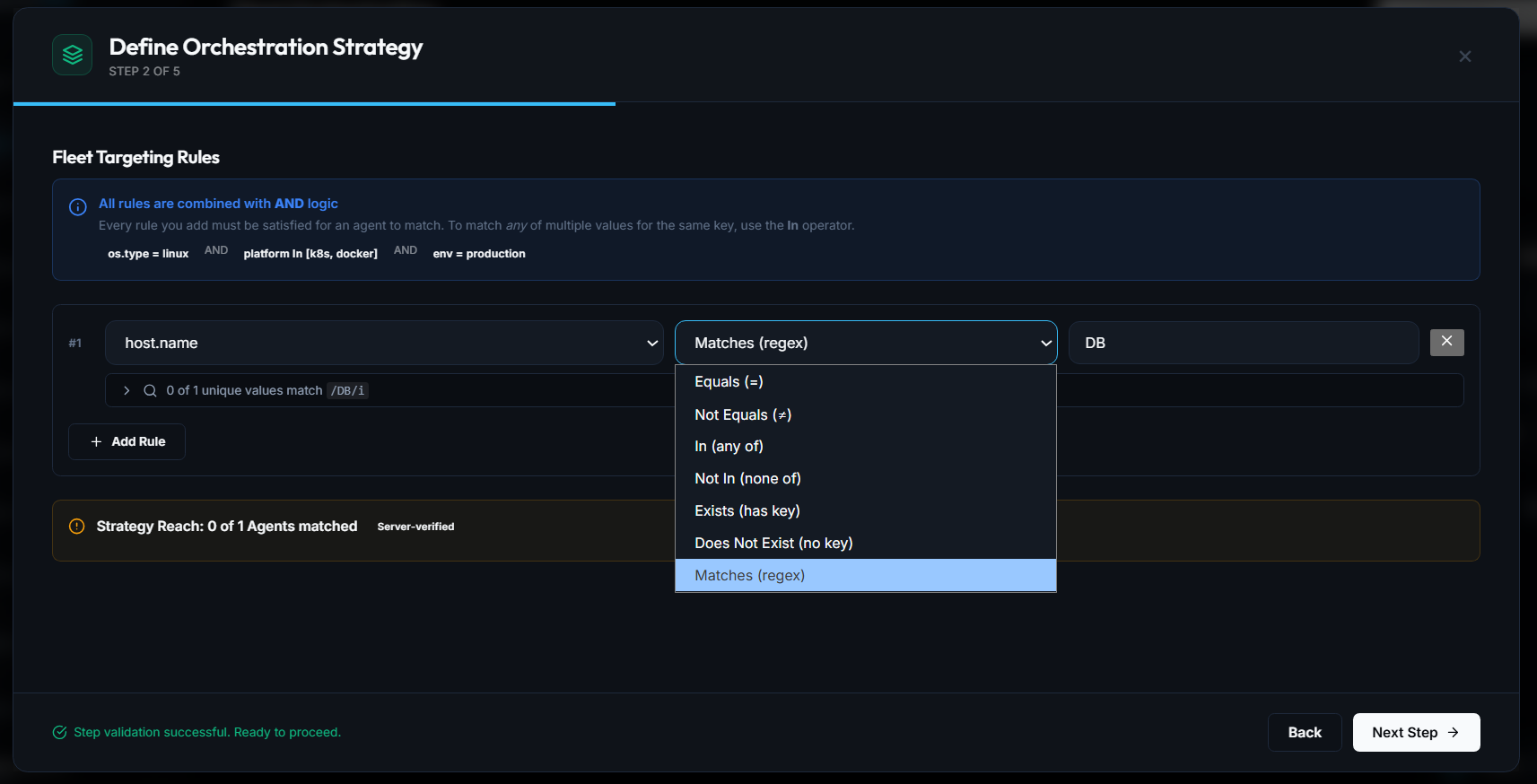

Define Orchestration Strategy - Step 2 Fleet Targeting Rules Expand

Rule Composition & Logic

  • AND Logic Across Rules: Every rule you add must be satisfied for an agent to match.
  • In Operator for Multi-Value Matching: To match any of multiple values for the same key, select the In (any of) operator. (e.g., os.type = linux AND platform In [k8s, docker] AND env = production)

Supported Operators

OperatorSyntaxUse Case
Equals (=)Exact matchTargeting an explicit environment (e.g. env = production).
Not Equals (≠)ExclusionOmitting specific canary or testing nodes.
In (any of)Set inclusionMatching multiple target values (e.g. [linux, windows]).
Not In (none of)Set exclusionExcluding specific regions or legacy clusters.
Exists (has key)Key checkEnsuring an agent reports a custom tag or label.
Does Not ExistAbsence checkIdentifying unclassified or unmigrated hosts.
Matches (regex)Regular expressionPowerful pattern matching (e.g. host.name Matches DB).

Real-Time Strategy Reach Verification

As you type regex patterns or select attributes, the console dynamically checks your live fleet:

  • Displays how many unique values match your expression (e.g. 0 of 1 unique values match /DB/i).
  • Calculates Strategy Reach (Server-verified) in real time, showing the exact number of matching agents before you commit the policy.

Click Next Step → to proceed.

Step 3: Choose Configuration & Upgrade Focus

CollectorCtrl separates policy intent into dedicated management streams for both Main Collectors and optional Sidecar Collectors:

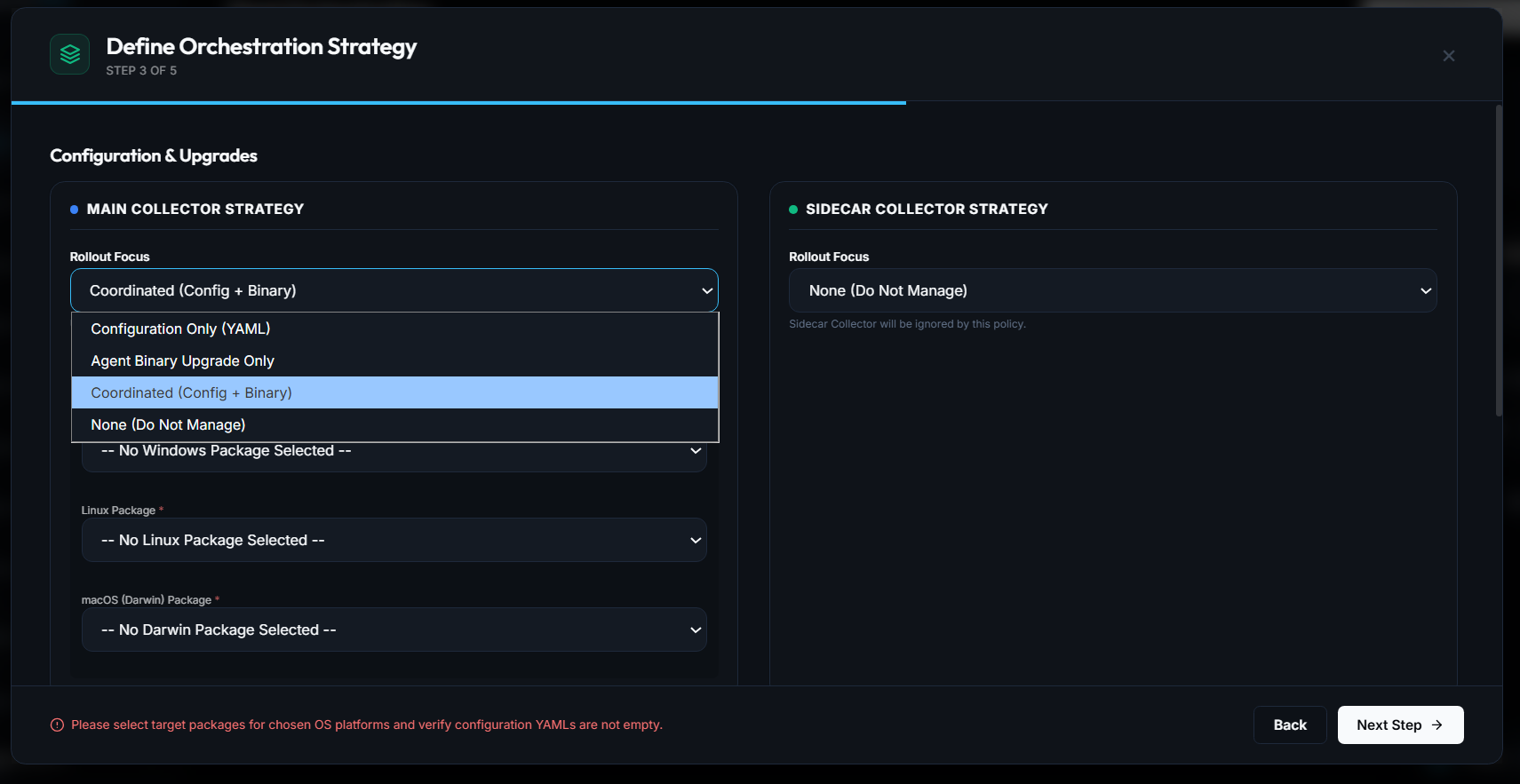

Define Orchestration Strategy - Step 3 Configuration and Upgrades Expand

Main Collector Strategy

In the Rollout Focus dropdown, choose what this policy controls:

  1. Configuration Only (YAML): Pushes OpenTelemetry Collector configuration YAML to matching nodes without altering the installed collector binary.
  2. Agent Binary Upgrade Only: Distributes and updates the OpenTelemetry Collector binary without modifying existing YAML pipelines.
  3. Coordinated (Config + Binary): Simultaneously deploys both a specific collector binary package and its corresponding YAML configuration file in a synchronized atomic step.
  4. None (Do Not Manage): Leaves the main collector unmanaged.

When binary packages are required, select the target packages for Windows, Linux, and macOS.

Sidecar Collector Strategy

If your architecture runs an auxiliary sidecar collector alongside the host supervisor, configure its rollout focus here or leave it set to None (Do Not Manage).

Click Next Step → to configure the rollout engine.

Step 4: Select Rollout Strategy (Atomic vs. Canary)

CollectorCtrl provides two distinct deployment engines based on your risk profile and rollout requirements:

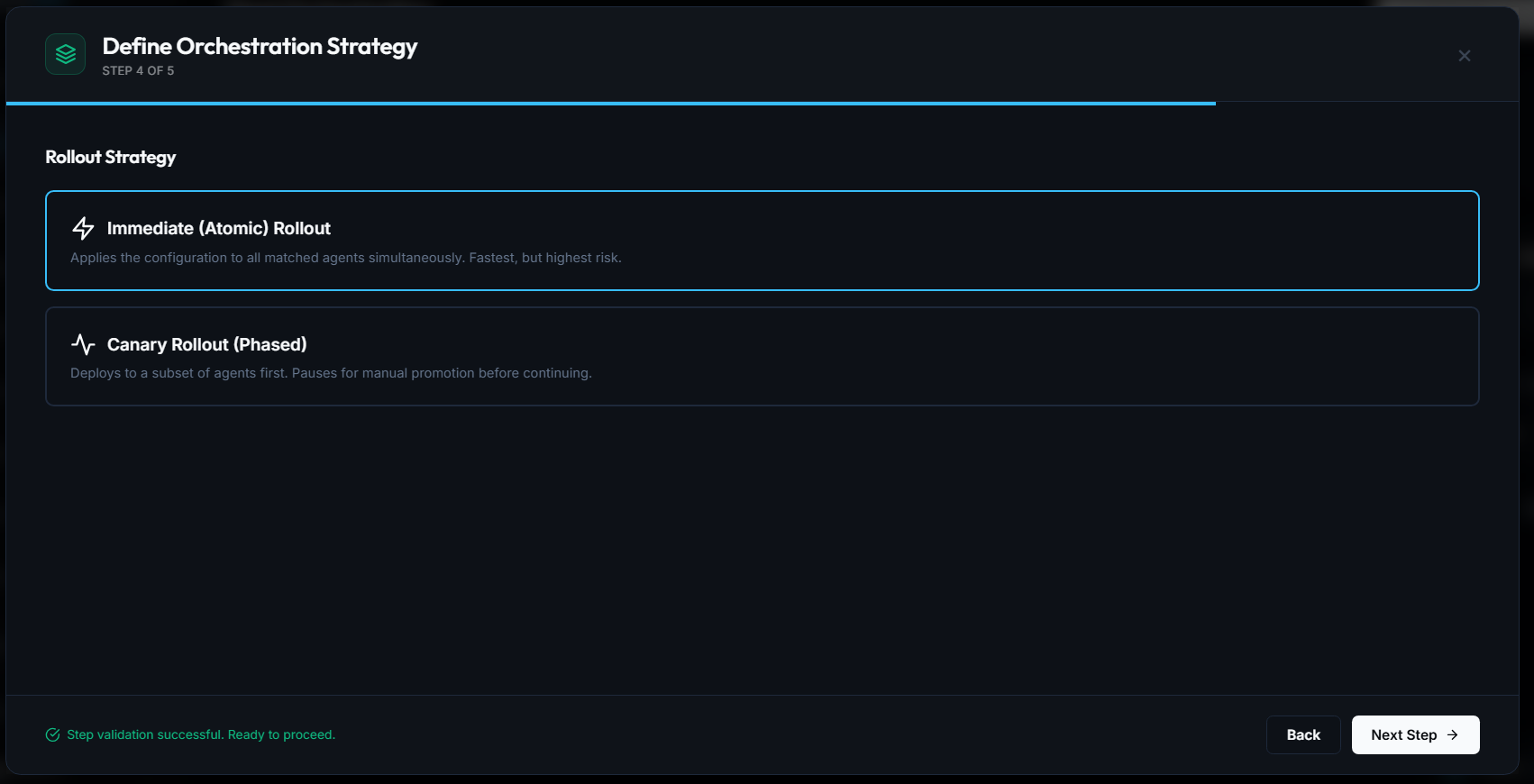

Define Orchestration Strategy - Step 4 Rollout Strategy Expand

Option A: ⚡ Immediate (Atomic) Rollout

  • Behavior: Dispatches the configuration to all matching agents simultaneously over established OpAMP channels.
  • Best For: Non-production environments, local evaluations, or global emergency hotfixes where rapid propagation is paramount.

Option B: 📈 Canary Rollout (Phased)

  • Behavior: Deploys the configuration to an initial subset of matching agents (e.g., 10%) first.
  • Safety Gate: Pauses rollout progression automatically, allowing engineering teams to monitor collector CPU, memory, error rates, and telemetry output.
  • Promotion & Abort:
    • Promote: Once telemetry health is confirmed on the canary nodes, promote the change to 100% of the fleet.
    • Abort & Rollback: If the canary exhibits errors, abort the rollout instantly to revert the canary subset with zero impact to the rest of the fleet.
Built-In Agent Safety

Regardless of whether you select Atomic or Canary, every individual Supervisor performs a pre-flight syntax check (otelcol validate) before applying configurations. If a YAML file is malformed, the Supervisor refuses to apply it and reports a Reconciling / Validation Failed error back to the server.

Click Next Step → to reach the final review screen.

Step 5: Review & Deploy

The review screen aggregates all strategy decisions into an immutable audit snapshot:

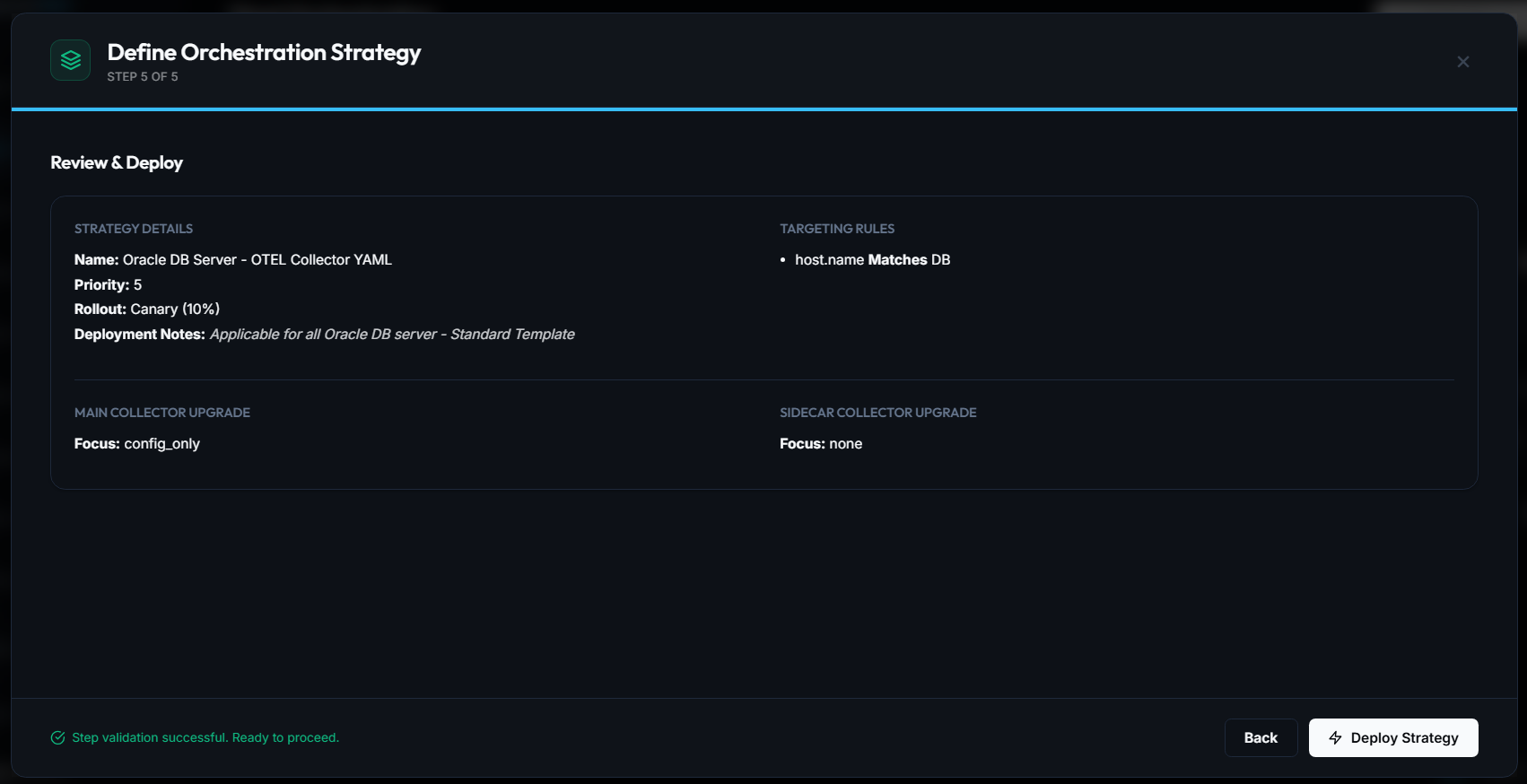

Define Orchestration Strategy - Step 5 Review and Deploy Expand

Verify the deployment summary:

  • Strategy Details: Name, Strategic Priority Weight, Rollout Mode (Immediate or Canary (10%)), and Deployment Change Reason.
  • Targeting Rules: The compiled attribute rules (e.g. host.name Matches DB).
  • Main Collector Upgrade Focus: (e.g. config_only, coordinated).
  • Sidecar Collector Upgrade Focus: (e.g. none).

Click ⚡ Deploy Strategy to publish the policy.

Step 6: Monitor Propagation & Impact

Once published, the policy becomes active immediately:

Strategy: Oracle DB Server - OTEL Collector YAML
Priority: #5  |  Target: host.name Matches DB  |  Status: Active  |  Propagation: 100% [██████████]

Tracking in the Dashboard

  1. The Active Orchestrations count increments.
  2. The Propagation bar displays real-time rollout progress across target agents as they acknowledge configuration receipt.
  3. The Status pill indicates Active.

Inspecting Target Node Logs

On any targeted host, you can observe the Supervisor receive the OpAMP update, validate the payload, and signal the collector:

Linux
$sudo journalctl -u collectorctrl-supervisor -n 50 --no-pager
Windows PowerShell
PS >Get-Content 'C:\ProgramData\CollectorCtrlSupervisor\supervisor.log' -Tail 50

Sample log output:

[OpAMP] Received remote configuration update for policy: Oracle DB Server - OTEL Collector YAML
[Validator] Running dry-run validation (otelcol validate)... PASS
[Supervisor] Writing effective config to /etc/otelcol/config.yaml
[Supervisor] Restarting collector child process...
[Health] Collector health check on http://localhost:13133: HTTP 200 OK
[OpAMP] Status report: In Sync (Effective Hash: e9a24f0c)

Version History & Instant Rollback

Every deployed strategy maintains a full version history:

  1. Locate the strategy in the Fleet Orchestration table.
  2. In the ACTIONS column, click the History (🕒) button.
  3. Compare diffs between revisions, review deployment notes, or click Rollback to revert to any previous configuration state fleet-wide.
